Medium Fix-it Foot 400mm Rubber Isolationg Pad for Air Conditioner

Price:

USD 7.00-27.00 / Case

Min.Order Quantity:

1000 Case/Cases

Supply Ability:

100000 Set/Sets per Month

Port:

Shanghai or Ningbo

Place of Origin:

Payment Terms:

Brand:

Products Model:

Products Details
Company Profile

Quick Details

Packaging & Delivery

Packaging Details: boxes, then carton to pallets, or directly to pallets
Delivery Detail: --

Specifications

Medium Fix-it Foot 400mm

Product Description

Key Points of Rubber Fix it foot:

· UV stabilized, durable recycled rubber;

· Built-in anti-vibration;

· Corrosion resistant aluminum channel;

· Compatible with industry standard comportment;

Shield Rubber fix it foot is of excellent capacity on vibration absorbing and noise reduction. It is made of highly elastic rubber, with lifespan of more than 20 years after UV stablized treatment. There is embedded groove design in the bottom of each items, which is convenient for leveling out and adjusting the height. While the aluminum groove slideway is conducive to adjust the fixed hole sites. As replacement of steel groove support, it would considerably save cost and time of installation. It only takes about ten minutes to install one equipment.

Application of Fix It Foot

Equipments can be placed on the roof or ground without damage water proof structure on the buildings.

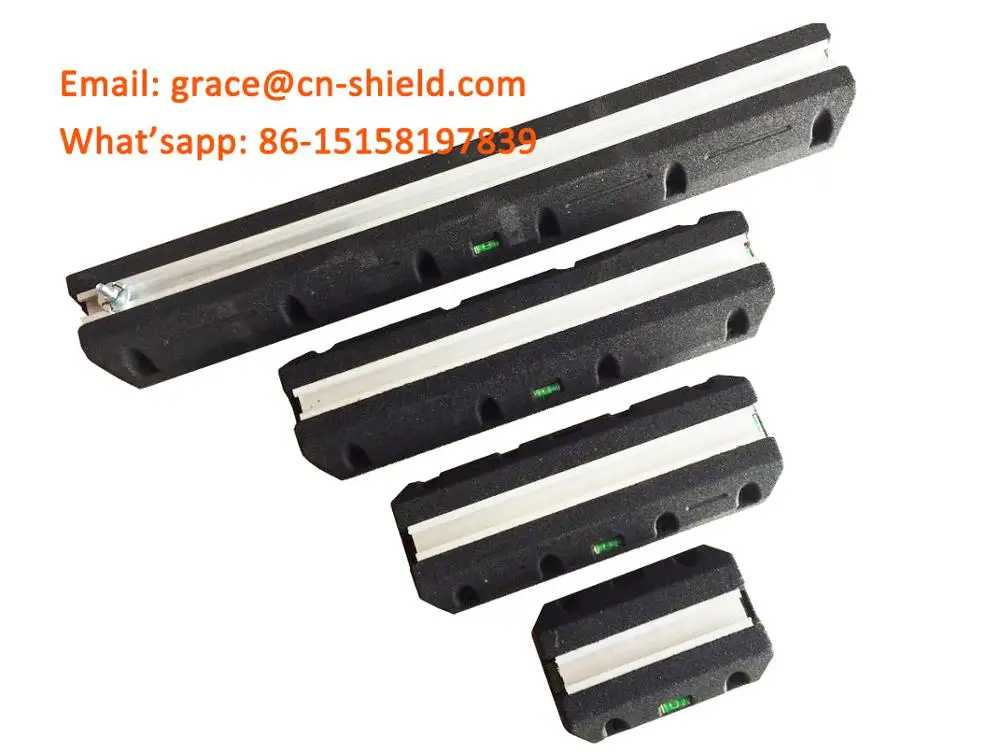

Sizes of Fix it Foot:

Item No.	Loading Capacity	Dimension(mm)			Aluminum Channel(mm)	Weight(kg)
Item No.	Loading Capacity	Length	wideth	Height	Length
JRF-250	200kg	250	160	90	220	4.6
JRF-400	350kg	400	160	90	370	8
JRF-450	450kg	450	160	90	410	10
JRF-600	600kg	600	160	90	560	13
JRF-1000	800kg	1000	160	90	960	20
JRF-450B	300kg	450	130	60	410	5
JRF-500B	300kg	500	130	60	460	5.5
Fixings & Fittings	JRF-250	2 pcs per kit, with 2 fixing screw(M10*40, G8.8 ) and 4 level gauge.
Fixings & Fittings	Others	2 pcs per kit, with 4 fixing screw(M10*40, G8.8 ) and 4 level gauge.

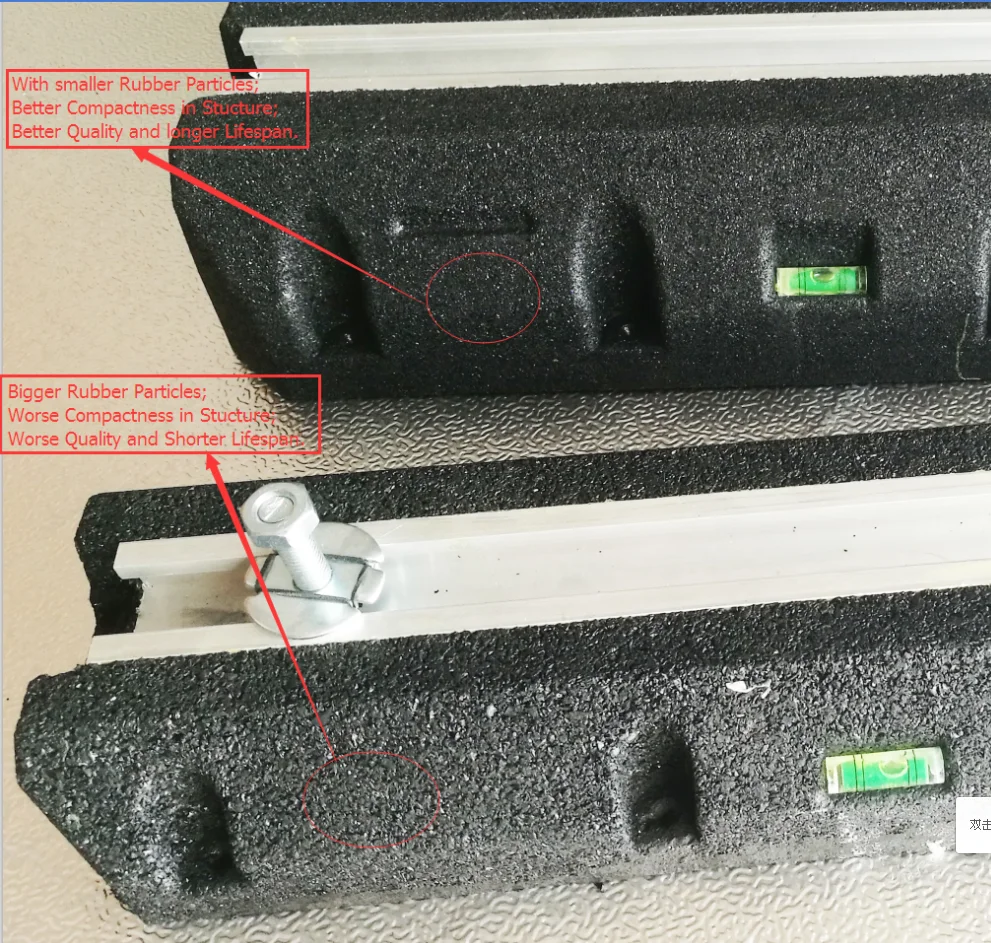

Shield New Fix It Foot VS Other ordinery Fix it Foot:

Shield Fix it Foot has much smaller rubber particles, then would be much more compact in structure and longer in lifespan.

Zhuji Shentong Machinery & Electric Industrial Co., Ltd was established in 1995, it has been devoting to design, research and manufacture of pipe fittings applied to HAVC & R equipment and building engineering ever since, like Vibration Absorbers, Refnet Joints, Copper & Brass Fittings and Vibration Isolation products.
Shentong has advanced laboratories and professional R&D team, it provides customers with excellent quality products as well as best solutions.

Range of Products:
Standard Vibration Absorber; Vibration Absorber for Auto Air Conditioner, Locomotive Air Conditioner, Precision Air Conditioning and Transport Refrigerator etc.; Supercritical Carbon Dioxide CO2 Vibration Absorber.
Vibration Absorbers are designed to be installed in the suction and discharge lines of air conditioning and refrigeration systems to reduce vibration in the transmission of compressor-induced vibration through tubing.
Flexible Stainless Steel pipes of ordinary, high and extra high pressure are applied to refrigeration inspection equipment, refrigerant charging devices, special air conditioning, special vehicle, ship, aviation, petrochemical engineering, pump and etc.
They can be applied to all kinds of refrigerant, oil, gas and water. Customized items are available in terms of length, diameter, materials and connections.

Refnet Joint Kits for VRF VRV Air Conditioning System: most models of joints are available, PE insulation is provided if needed.
Other Refrigeration Fittings like Brass Distributor, Sight Glass, Check Valve, Filter Drier, Co2 Filter and etc.
Copper and Brass Fittings like Elbow, Coupling, U Bend, Reducer, Tee and etc. Their sizes are available both in metric and inches.
Vibration Isolation Products like Spring Hangers, Housed Spring Damper, Rubber Fix-It Foot and etc.

Shentong has big market shares for vibration absorbers in domestic. Vibration absorbers and other items are also export to almost of countries and regions worldwide.
